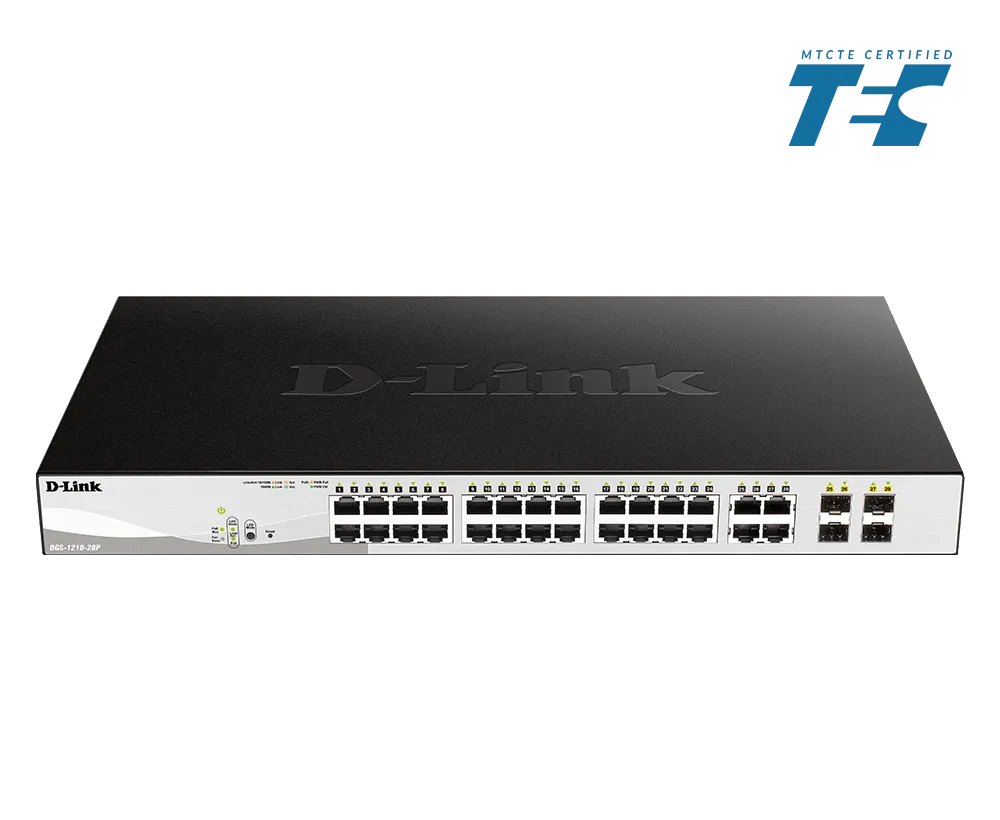

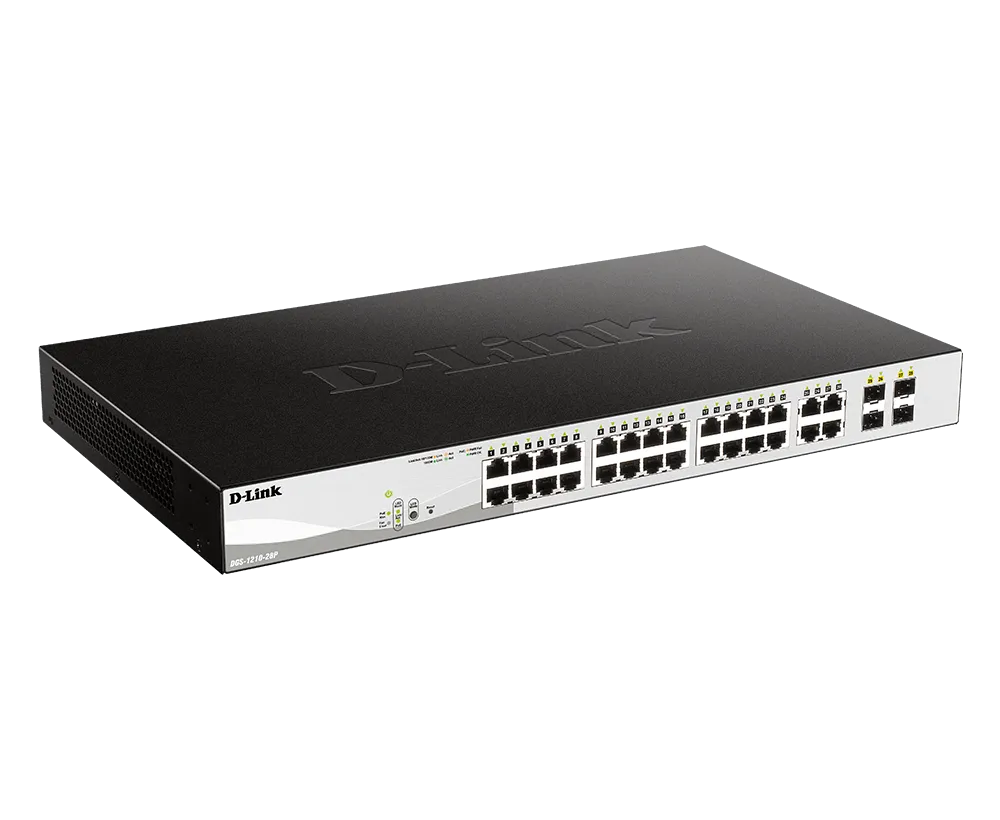

The DGS-1210-28P is a high-capacity smart managed PoE switch that integrates both power and data delivery in one robust platform. It provides 24 Gigabit PoE+ ports alongside 4 Gigabit combo ports (RJ-45/SFP), giving you flexibility in uplink configuration. Each PoE port supports IEEE 802.3af/at standards, delivering up to 30 W per port, with a total PoE budget of 193 W, ensuring ample power for IP cameras, wireless access points, and other powered devices.
This switch supports advanced Layer-2 features such as VLAN segmentation, QoS prioritization, link aggregation, static routing, IGMP snooping, and port mirroring. It also includes Auto Voice VLAN and Surveillance Mode, automatically identifying and prioritizing voice and video traffic to maintain quality and performance across diverse networks. Time-based PoE scheduling allows administrators to enable or disable PoE on specific ports during off-hours to save energy.
Built for reliability, the DGS-1210-28P is fanless in typical use, includes D-Link Green power efficiency features, and operates in a wide temperature range. The metal chassis supports rack mounting, and the user interface is accessible via web GUI, SNMP, or CLI. With its strong combination of throughput, PoE capability, and management features, the DGS-1210-28P is well suited for demanding surveillance, wireless, and converged IP deployments.
Technical Specifications
| Specification | Detail |
|---|---|
| Model / Series | DGS-1210-28P |
| Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ ports + 4 × Gigabit combo (RJ-45 / SFP) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output per Port | 30 W |
| Total PoE Budget | 193 W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Packet Buffer | 4.1 Mbits |
| MAC Address Table | 16,000 entries |
| Management / Features | Web GUI, SNMP, CLI, VLAN, QoS, LACP, static routing, IGMP snooping, port mirroring, loopback detection, cable diagnostics |
| Advanced Features | Auto Voice VLAN, Surveillance Mode, Time-based PoE, Access Control List (ACL), Safeguard Engine |
| Energy Efficiency | D-Link Green features, EEE (Energy Efficient Ethernet) support |
| Power Input | 100–240 VAC |
| Power Consumption | ~17.32 W (base) + PoE load |
| Operating Temperature | –5 °C to 50 °C |
| Humidity | 0% to 95% non-condensing |
| Dimensions | 440 × 140 × 44 mm |
| Weight | ~2.15 kg |
