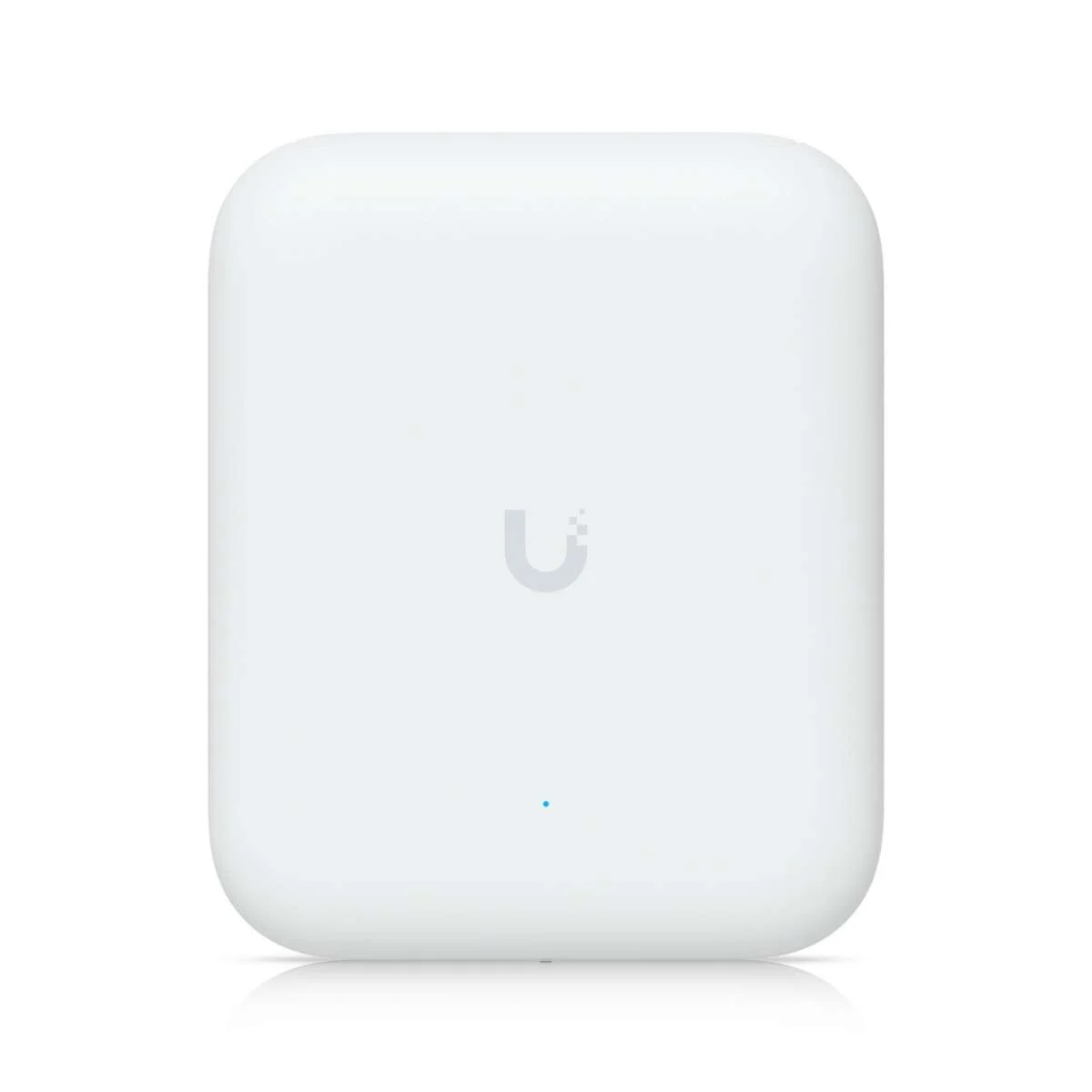

Ubiquiti UniFi U7 Pro Outdoor Access Point (U7-Pro-Outdoor) – High-Performance WiFi 7 Outdoor AP
The U7 Pro Outdoor takes enterprise-grade WiFi outdoors, delivering blazing-fast WiFi 7 performance with up to 8.6 Gbps throughput, 6 spatial streams, and extended coverage for large-scale deployments.
Its switchable antenna system gives you the flexibility of long-range directional coverage or wide omni coverage, making it perfect for campuses, estates, malls, industrial yards, or outdoor events.
With an IP67 weatherproof enclosure, the U7 Pro Outdoor can withstand harsh rain, dust, and strong winds — ensuring stable, reliable performance in the most demanding conditions. Powered via PoE+, installation is simplified to a single cable for power and data.
Key Features
-
WiFi 7 (802.11be) for next-generation speed & efficiency
-
6 spatial streams with MU-MIMO/OFDMA
-
8.6 Gbps (5GHz) + 688 Mbps (2.4GHz) + AFC 6GHz support
-
465 m² (5,000 ft²) coverage – perfect for outdoor estates & enterprises
-
Supports 300+ clients simultaneously
-
Switchable antennas: directional internal or external omni
-
2.5GbE uplink port for lightning-fast backhaul
-
Powered by PoE+ (max 21W) for easy installation
-
All-weather IP67-rated – rain, dust & wind resistant
-

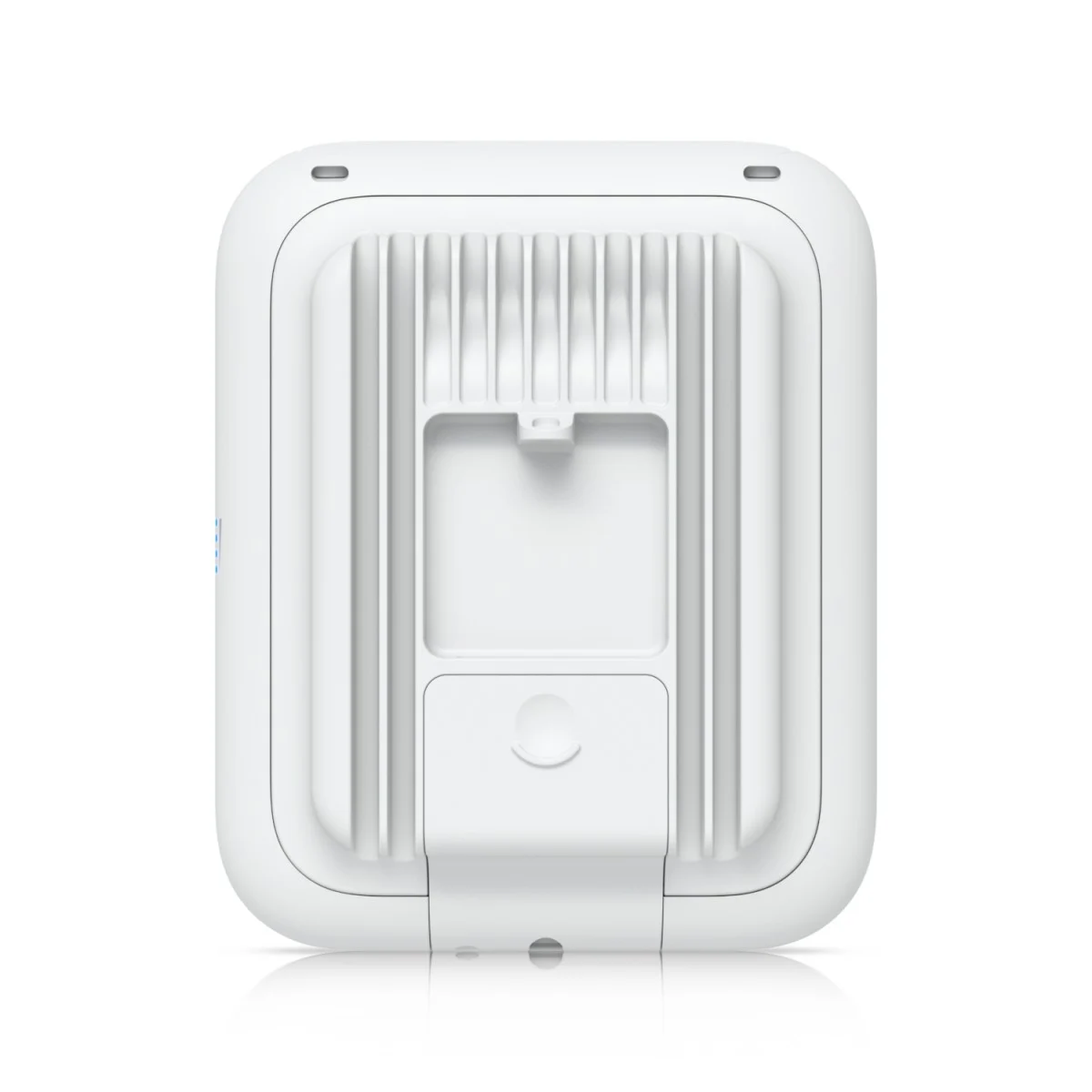

Wall or pole mounting options included
Technical Specifications (At a Glance)
-
Dimensions: 170 x 208 x 66.5 mm (without mount) | 170 x 208 x 121.8 mm (with mount)
-
Weight: 1.2 kg (device only), 1.33 kg (with mount)
-
Enclosure: UV-stabilized polycarbonate + aluminum alloy
-

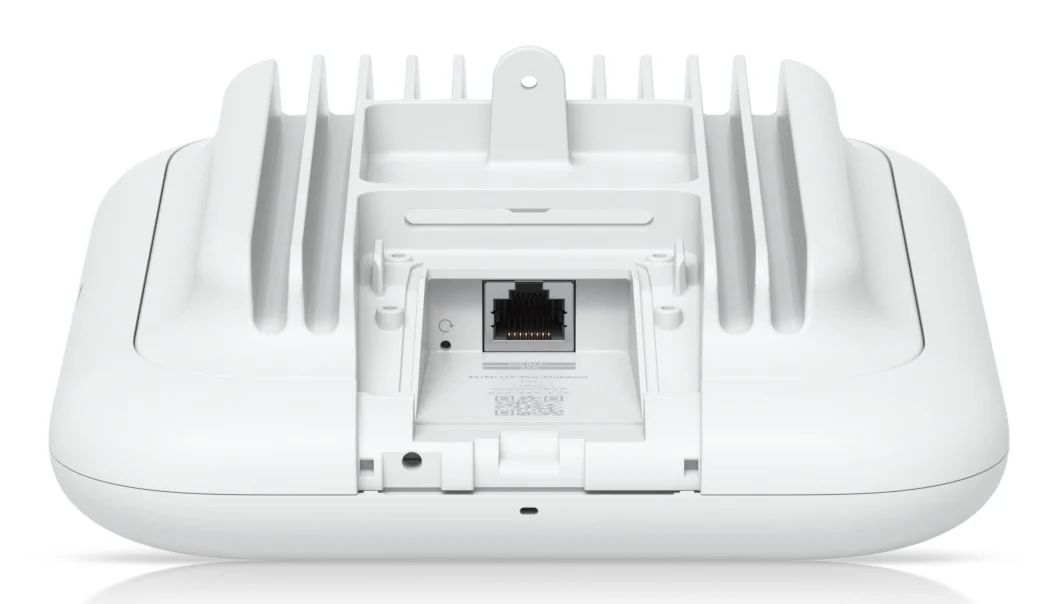

Networking Interface: 1 × 2.5GbE RJ45
-
Max Power Consumption: 21W | PoE+ (42.5–57V DC)
-
WiFi Standards: 802.11a/b/g/n/ac/ax/be (WiFi 6 & WiFi 7)
-
MIMO: 4×4 (5GHz), 2×2 (2.4GHz, 6GHz)
-
Antenna Gain:
-
5GHz: 11 dBi directional / 8 dBi omni
-
2.4GHz: 8 dBi directional / 6 dBi omni
-
6GHz: 10 dBi directional
-
-
Weatherproofing: IPX6 (standard), IP67 with cable-gland kit (included)
-
Operating Temp: -30°C to 60°C
-
Client Capacity: 300+ concurrent devices
-
Advanced Features: Fast Roaming (802.11r), Band Steering, Guest Isolation, VLAN, Hotspot 2.0, RadSec, Captive Portal
Why Choose the U7 Pro Outdoor?
If you need outdoor WiFi that doesn’t compromise on performance, the Ubiquiti UniFi U7 Pro Outdoor is your best bet. With WiFi 7 speeds, 6GHz spectrum support, enterprise-grade security, and robust weather protection, it’s perfect for businesses, campuses, and estates that demand fast, stable, and future-ready wireless connectivity outdoors.
