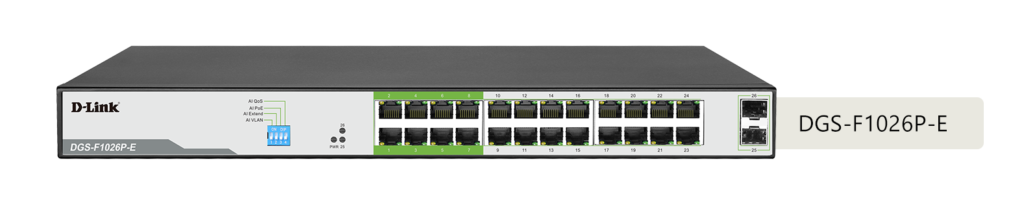

D-Link upto 250 Meter support 24-Port 1000Mbps PoE Switch with 2 SFP Ports – DGS-F1026P

Power over Ethernet
Support for IEEE 802.3at/af Power over Ethernet
(PoE) on ports 1 to 8 allows for powering of
PoE-powered devices up to 250m and ports 9 to
16 up to 100M

PoE Power Budget
A large 250W PoE power budget and up to 30
W per port for simultaneously powering
multiple PoE-compatible devices

Plug-and-play
Plug-and-play installation means the switch can
be quickly and easily installed without the need
for any additional configuration

Categories:D-Link

Brand: D-Link

Features

High-Speed Networking

24 10/100/1000 Mbps Ethernet ports
Full/half-duplex for Ethernet/Fast Ethernet/Gigabit
2 SFP Uplink

Functions

VLAN
EXTEND
POE
QoS

Easy Setup

Plug-and-play installation
Auto MDI/MDI-X crossover on all ports

PoE Functionality

Twenty-Four PoE ports
IEEE 802.3af/at compliant
250W total power budget
Up to 30 W power output per PoE port

General
Size	Desktop (with Mounting Kit)
Interfaces	24 10/ 100/1000 BASE-T ports 2 SFP
Standards	IEEE 802.3u,Fast Ethernet standard ; IEEE 802.3ab,Gigabit Ethernet standards IEEE 802.3ab,Gigabit Ethernet standards IEEE 802.3x,Full-duplex Ethernet data link layers ; IEEE 802.3af/at ,Ethernet power supply POE standard ; IEEE 802.3az ,EEE,Energy efficient Ethernet standard ; IEEE 802.3z ,Gigabit Ethernet fiber-optic standard ;
Media Interface Exchange	Auto MDI/MDI-X adjustment on all ports
Lighting Protection	6KV
Performance
Switching Fabric	52 Gbps
Mac address	8K
Transmission Method	Adopt Store-and-forward
Data Transfer Rates	Gigabit Ethernet 1000 Mbps Ethernet 100 Mbps
Packet Filtering / Forwarding Rates	10M port maximum 14800pps 100M port maximum 148800pps 1000M port maximum 1488000pps
PoE
PoE Standards	IEEE 802.3af IEEE 802.3at
PoE-Capable Ports	Port 1 – 24 (Port 1 – 8 PoE can support up to 250m @ 10Mbps with Extend enabled)
Power Budget	25 0W (30 W max. per PoE port)
LEDs
Power	✓
Link/Activity	✓
Physical
Weight	3kg
Dimensions	440 x 180 x 44 mm
Power	250W
Temperature	Operating: 0 to 40 ̊C (32 to 104 ̊F)
Humidity	Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing
Certifications
Safety	LVD
EMI/EMC	CE FCC
