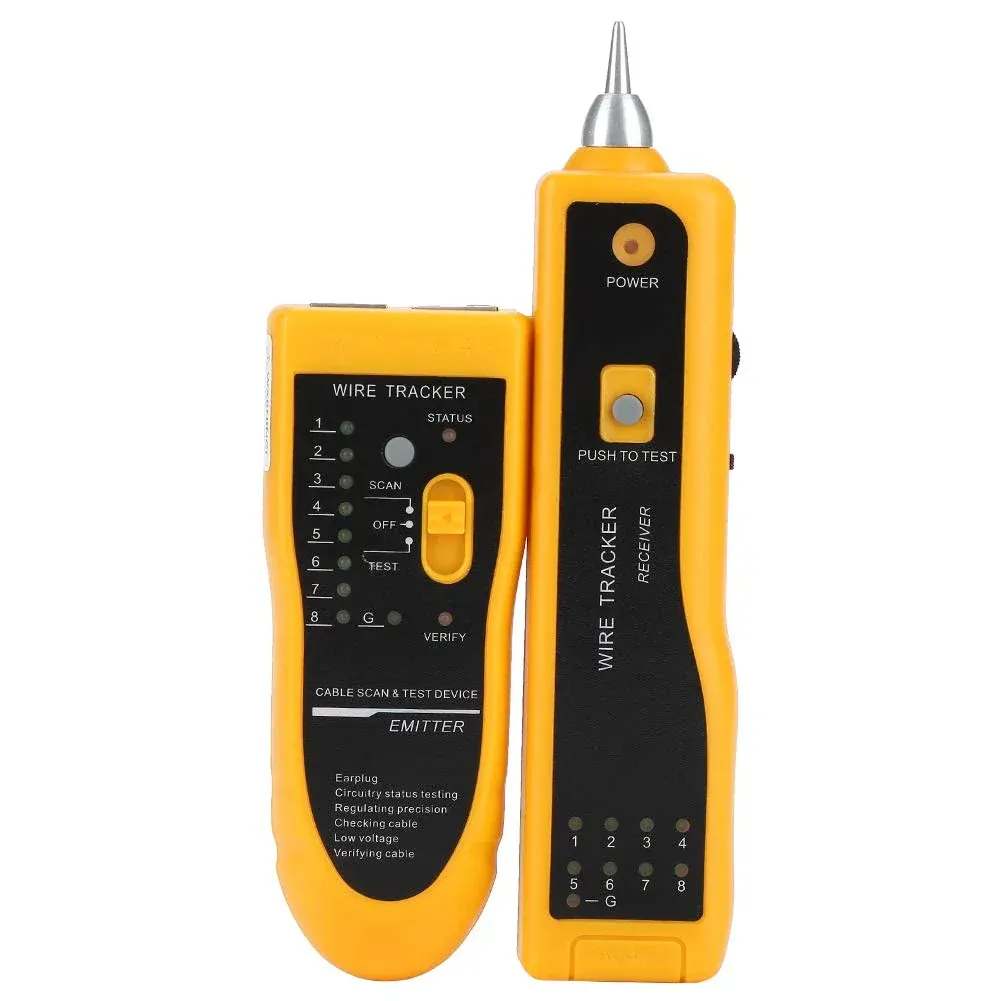

Paso PS806B Wire Tracker

Paso PS806B Wire Tracker serves as an essential tool for cable location and diagnostics. This reliable cable tracer identifies and traces wires quickly. Network installers and technicians in Kenya use it for efficient troubleshooting in complex setups.

Moreover, the device supports multiple tracing scenarios. For instance, professionals locate hidden cables in walls or bundles. Similarly, it verifies connections in telecom and network environments. In addition, users diagnose faults without interrupting service. Therefore, it saves time during installations. The non-destructive method protects insulation. Consequently, repairs remain safe and effective.

Detailed Use Cases and Compatibility

Network Cable Tracing and Identification

First, the Paso PS806B Wire Tracker excels in Ethernet cable location. For example, it traces RJ45 cables in patch panels or switch rooms. Additionally, it finds target wires among crowded bundles. Thus, installers identify specific lines in data centers or offices seamlessly.

Telephone and Telecom Line Finding

Furthermore, the tool handles RJ11 telephone wires effectively. It traces voice lines in PBX systems or home setups. The alligator clips connect securely to various wires. Therefore, technicians locate faults in telecom infrastructure quickly.

General Wire Diagnosis and Electrical Tracing

Moreover, it supports tracing in electrical systems. The probe detects signals along cables. However, use caution on live high-voltage lines. Compatibility includes Cat5, Cat5e, Cat6 UTP/STP cables. For related networking products, explore our networking category. Learn more about cable tracing principles at Wikipedia on cable tracers.

Technical Specifications

• Model: PS806B
• Functions: Cable tracing, wire identification, fault diagnosis
• Tracing types: Network (RJ45), telephone (RJ11), electrical wires
• Transmitter connections: RJ11 connector, alligator clips
• Receiver features: Adjustable sensitivity, audible tone, LED indicators
• Tone modes: Multiple frequencies for clear detection
• Additional capabilities: Continuity testing, open/short detection (in some modes)
• Power supply: 9V battery (transmitter and receiver)
• Material: Durable plastic housing, ergonomic design
• Probe: Inductive probe for non-contact tracing
• Length range: Effective up to several hundred meters (depending on cable)
• Volume control: Adjustable beeper for noisy environments
• Earphone support: Included jack for quiet operation
• Low battery indicator: Alerts for replacement
• Dimensions: Compact handheld size (approx. 200-250 mm length)
• Weight: Lightweight for portable use (around 300-400 g with battery)
